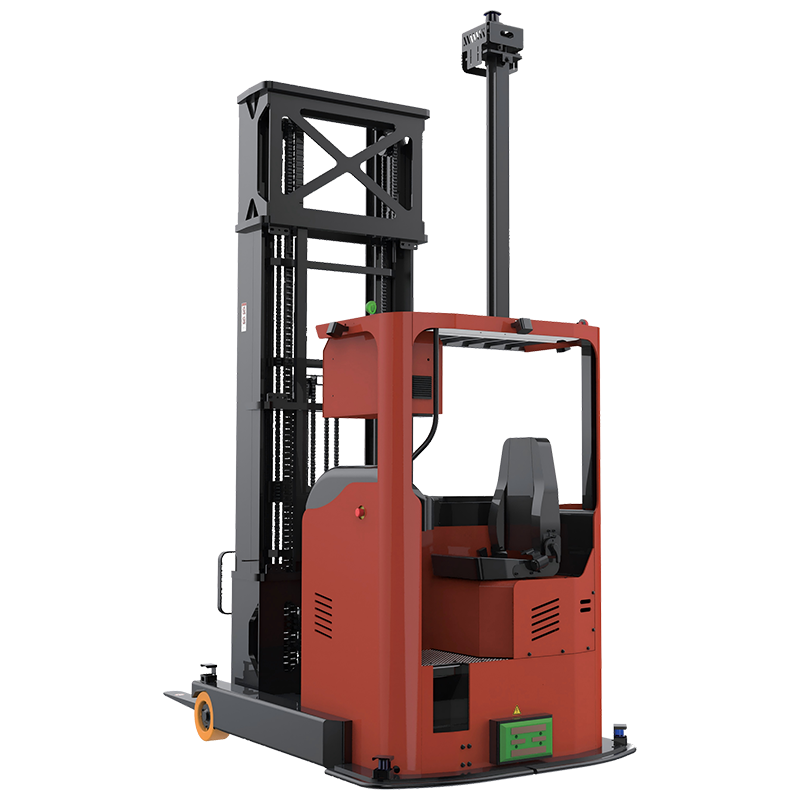

Double Mast Reach AGV with a load capacity of 2.0 tons. Its mast can extend or retract as a whole, enabling stacking in narrow aisles and meeting the demands of medium-to-high level racking and medium-density storage scenarios. Multiple configuration options are available, offering a variety of customized setups.

Technical Highlights

• Features a three-point chassis structure with optional all-wheel braking, ensuring strong traction and high-load stability.

• Equipped with imported Curtis controllers and servo controllers for enhanced stability, safety, and precision.

• High-strength H-type mast with ample strength reserve guarantees safety during high-level loading.

• Multiple configuration options available to adapt to different types of load carriers.

All-Scenario Logistics Handling

Product Advantages：

Narrow aisle & High lift & High operational accuracy
Minimum satcking aisle width: 2700mm; load capacity: up to 2T; Maximum lifting height: 12,000mm. Enables precise positioning of unmanned forklifts in natural environments, equipped with high-sensitivity sensing medules for carrier detection and unloading verification. Support adaptive and precise pallet handling with repeated placement accuracy ±10mm.

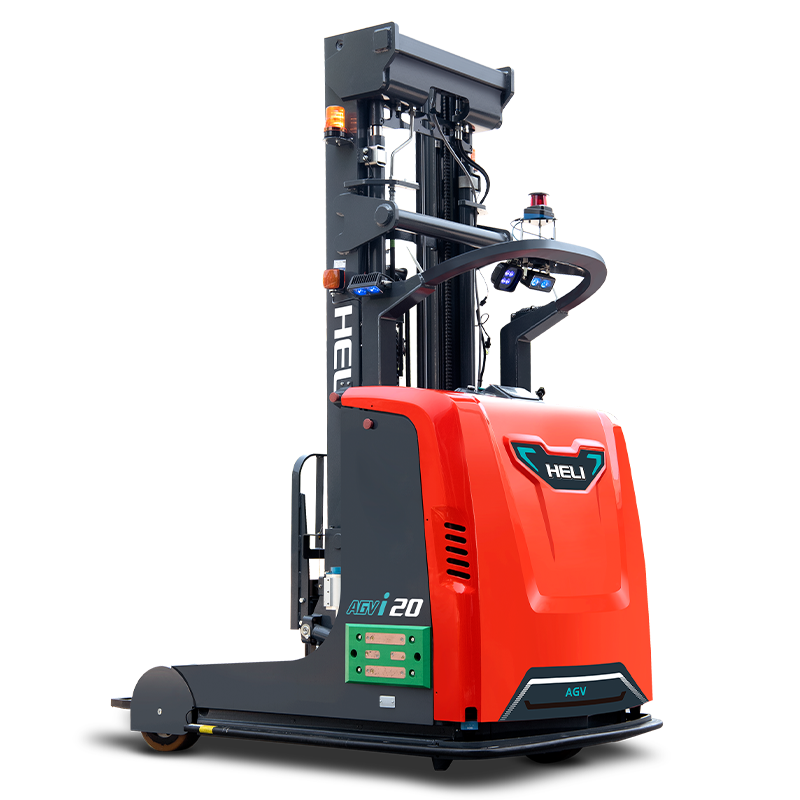

Reach Truck AGV Forklifts are commonly used in scenarios such as narrow-aisle stacking and automated production line docking. With a load capacity of 1.2–1.6 tons, they feature a more compact body and a smaller turning radius, offering excellent right-angle stacking performance. Diverse configurations are available, and various customized options are provided.

Technical Highlights:

• CE Certification.

• Utilizes Kollmorgen laser navigation for high positioning accuracy, with mature, stable, and reliable vehicle control and system scheduling.

• Three-point support structure design enables a small turning radius and strong maneuverability, meeting the demands of narrow aisles and confined spaces in warehousing and logistics operations.

• Cast alloy legs provide a low center of gravity and enhanced stability.

• Comprehensive safety protection through obstacle-avoidance lasers + fork-tip sensors + 3D obstacle avoidance + contour algorithm protection + anti-collision edges + audible and visual warnings.

• Cost-effective NDC system paired with Curtis drive, offering higher precision with servo steering control.

The Cold-Storage Reach AGV is commonly used in indoor high-rack, narrow-aisle warehouse freezing environments. It is capable of continuous operation in temperatures ranging from 0°C to -18°C and can also perform alternating cycles in freezing conditions from -20°C to -30°C.

Technical Highlights:

• Compact body structure design that easily meets intensive stacking requirements in cold storage environments.

• Equipped with side-mounted wireless charging for higher charging reliability.

• Specialized cold-storage navigation heads and obstacle avoidance sensors with high reliability.

• Cold storage-specific oils and greases ensure efficient and safe transmission systems in cold storage.

• Cold storage-specific anti-corrosion and rust-proof paint, chains, and cylinders easily cope with the humid environment of cold storage.

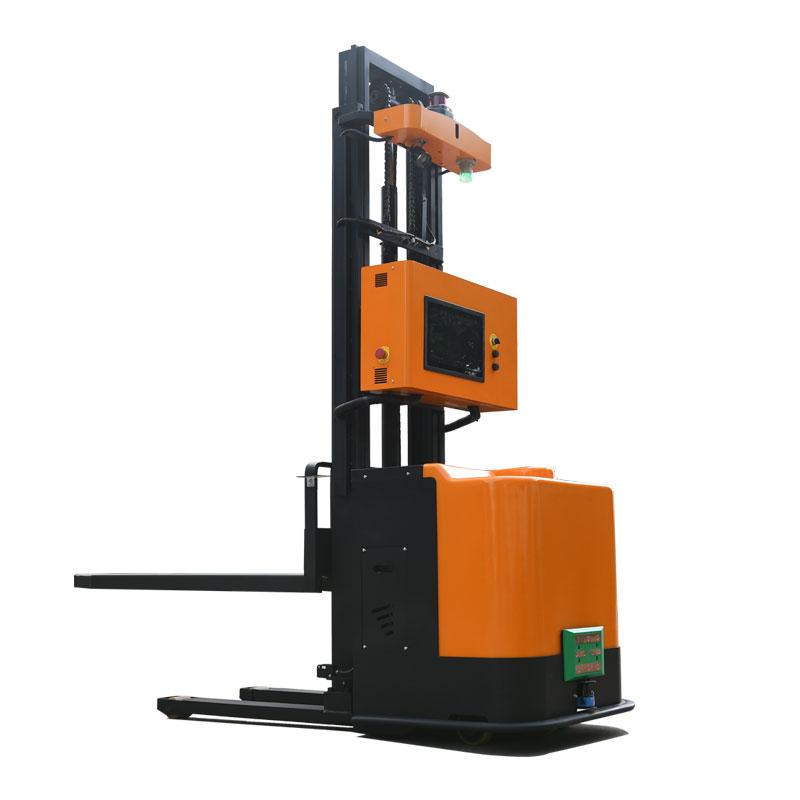

Reach AGVs are commonly used in narrow passages and indoor high-lift operations.

Technical Highlights:

• Excellent maneuverability and clearance, enabling narrower right-angle stacking aisles.

• Side-mounted automatic charging for higher charging reliability.

• Innovative mast structure with superior high-level load-bearing capacity.

• Interactive LCD intelligent display for easy monitoring of vehicle status.

• Automatic speed reduction on curves and obstacle detection for enhanced operational safety.
