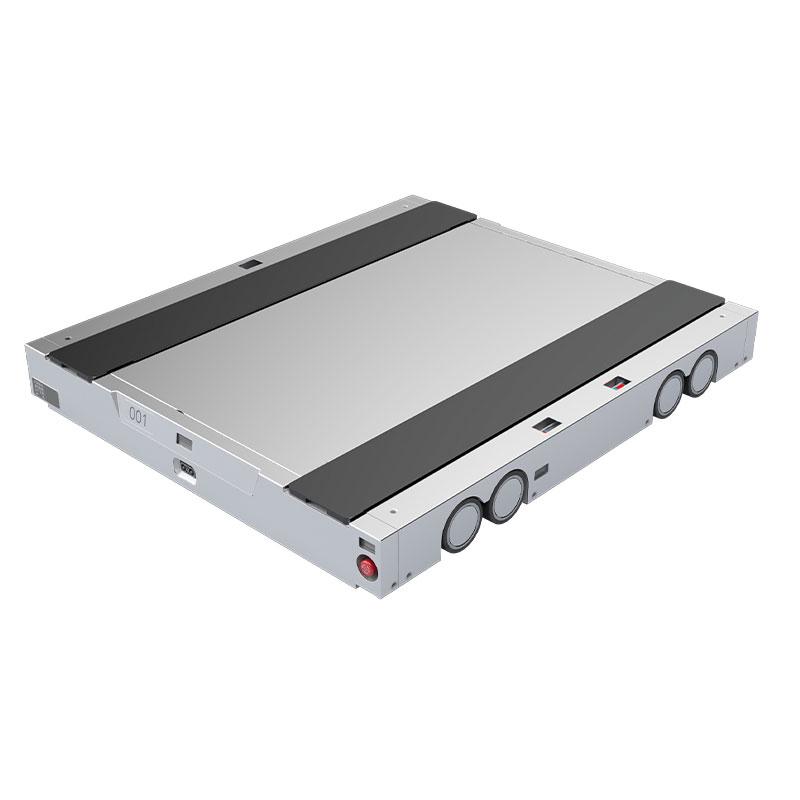

The Heli Yufeng Four-Way Shuttle is an innovative automated storage and retrieval solution. Its multidirectional navigation technology allows seamless movement across both longitudinal and transverse axes within high-density racking grids, effectively overcoming the scalability constraints and low asset utilization typical of conventional automated systems.
1. Maximized Space Utilization:
By eliminating fixed internal aisles, storage density is increased by up to 60% compared to conventional solutions.
2. High-Efficiency Collaboration:
Multiple shuttles operate in parallel, supported by intelligent algorithms that optimize task allocation and path planning, significantly enhancing throughput capacity.
3. Elastic Flexibility:
The system supports on-demand configuration and seamless expansion of shuttle fleets and rack modules, enabling truly scalable and adaptive warehousing capabilities.
As an ideal infrastructure for building modern, resilient supply chains, the system is widely applicable in manufacturing, cold chain logistics, e-commerce fulfillment, and retail distribution centers. It empowers enterprises to achieve ultimate space utilization and operational efficiency breakthroughs.
Product Detail
Video

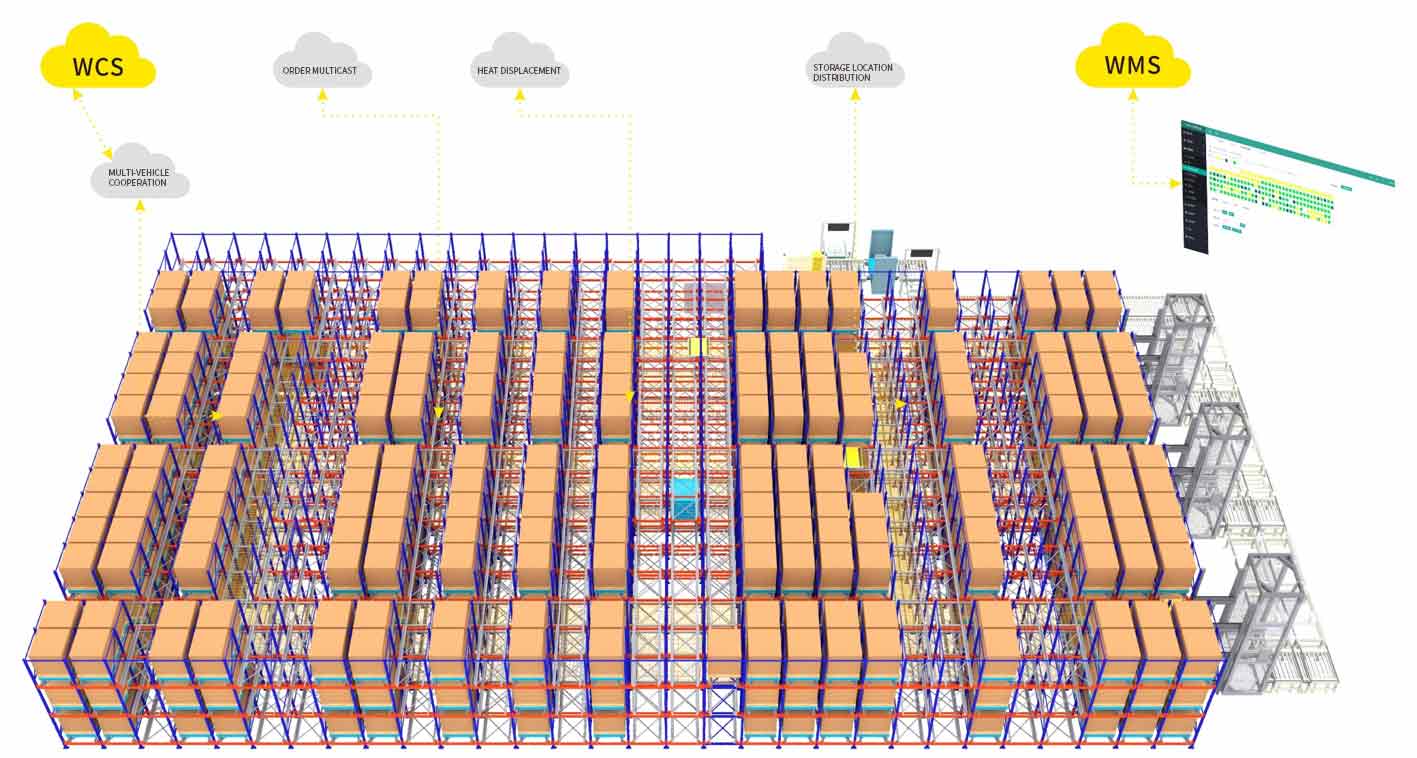

Advantages of Four-Way Shuttle AS/RS
1. High-Density Storage
Four-way shuttles can move freely within racking, eliminating the need for fixed aisles and allowing for more compact rack layout.
Storage density is increased by over 30% compared to traditional solutions.
2. Multi-Scenario Adaptability
Supports multi-floor and irregular warehouse layouts (e.g., L-shaped, U-shaped areas), without requiring strictly symmetrical rack arrangement.
Suitable for various temperature scenarios, including ambient, chilled, and frozen environments.
3. Flexibility and Efficiency
Four-way shuttles can move forward, backward, left, and right, enabling flexible cross-aisle and cross-layer operations.
The system optimizes task assignment and path planning in real-time to avoid congestion and enhance operational efficiency in complex scenarios.
4. Flexible Deployment and Strong Scalability
Shuttle quantity can be adjusted flexibly according to business fluctuations or seasonal demands (peak/off-peak periods).
Supports phased expansion of racking areas.
5. Energy Efficiency and Sustainability
Low-energy equipment + intelligent charging management reduces carbon emissions.
Long-term operational costs are lower than traditional forklift or stacker crane systems.
Technical Features of Four-Way Shuttle
1. All-Gearbox Structure
Zero chains, zero oil leakage, zero maintenance. Both travel and lifting utilize gearbox structures, offering long service life and maintenance-free operation for up to three years.
2. Modular Design
Vehicle modularity rate > 90%, with plug-and-play electrical components for easier maintenance.
3. Full Vehicle Perception
Equipped with 5 positioning sensors, 6 obstacle avoidance sensors, and 3 pallet detection sensors for comprehensive environmental awareness.
4. Intelligent System
Includes inventory management, cluster scheduling, path planning, and real-time monitoring.
Parameters
|
|
Model |
SXC15C |
|
Basic Parameters |
Vehicle Dimensions (mm) |
W900*D1130*H125 |
|
Compatible Pallet (mm) |
W1100*D1100 |
|
|
Rated Load Capacity (kg) |
1500 |
|
|
Vehicle Weight (kg) |
270 |
|
|
Performance Parameters |
Max Speed (Unloaded/Loaded) (m/s) |
2/1.5 |
|
Max Acceleration (Unloaded/Loaded) (m/s²) |
2/0.3 |
|
|
Lifting Time (s) |
1.5 |
|
|
Direction Change Time (s) |
2.5 |
|
|
Positioning Accuracy (mm) |
±2 |
|
|
Positioning Method |
Photoelectric + RFID |
|
|
Battery Parameters |
Battery Type |
Lithium Iron Phosphate (LiFePO₄) |
|
Battery Capacity |
48V/40Ah Specific parameters to be determined | |
|
Operating Time (h) |
8～10 |
|
|
Charging Time (h) |
1～2 |
|
|
Environmental Parameters |
Operating Temperature (°C) |
‐10～45 |
|
Operating Humidity |
(Non-condensing) |
