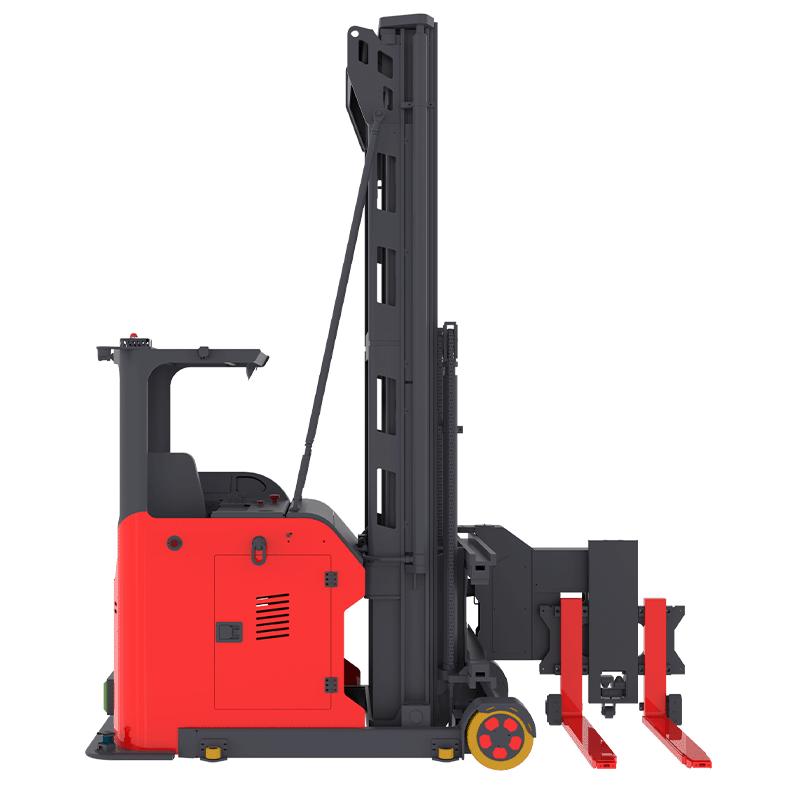

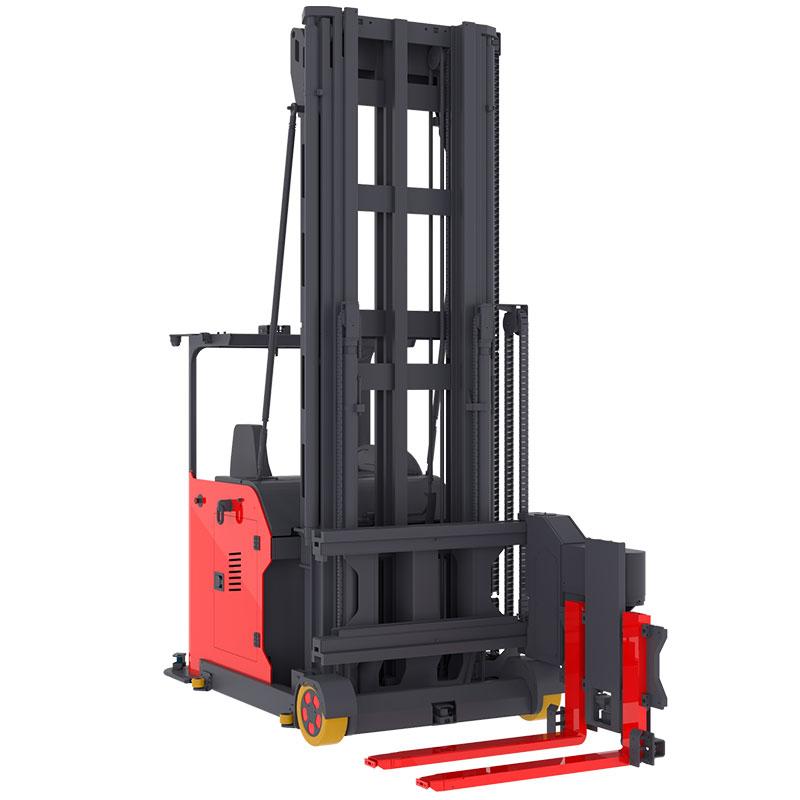

Narrow-Aisle Three-Way Stacking AGV Forklift utilizes 180° fork rotation and lateral shifting to handle stacking and loading/unloading on both sides of the aisle. Without requiring the vehicle to turn, the forks can efficiently pick up and place goods, enabling simpler and safer operations while significantly improving productivity. It is designed for medium-to-high level narrow-aisle stacking applications.
Technical Highlights：
Servo-driven three-way fork head ensures safe, reliable, and smooth operation.
Imported Curtis and servo controllers provide enhanced stability, safety, and precision.
High-strength imported mast with ample strength reserve ensures stable and safe performance.
Full-wheel braking system offers steady operation even at elevated heights.
Customizable designs available to accommodate various pallet types and aisle dimensions.
Product Detail
Product Video:

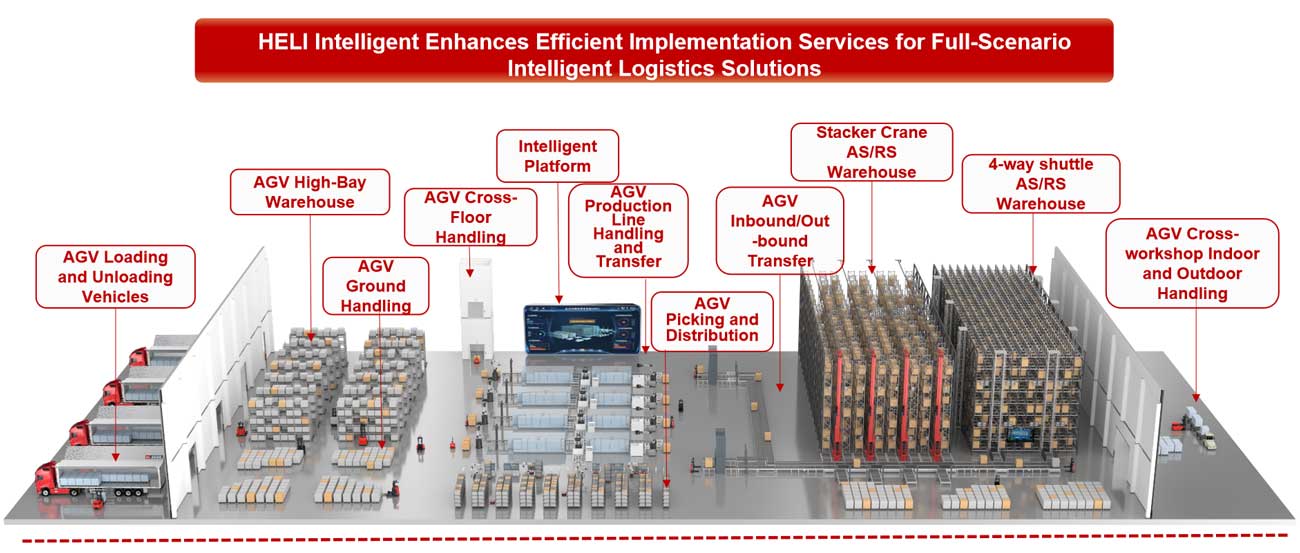

Industry Cases：
Product Advantage:
1.Designed for narrow-aisle warehouse operations indoors, requiring a minimum aisle width of only 1600mm, optimizing space utilization and significantly increasing storage capacity ； 2. The forks can rotate and shift left/right without requiring the vehicle to turn, greatly improving operational efficiency； 3. Supports LiFePO4 (Lithium Iron Phosphate) battery with an automatic charging system solution； 4. Equipped with CAN bus communication protocol for integrated vehicle control.

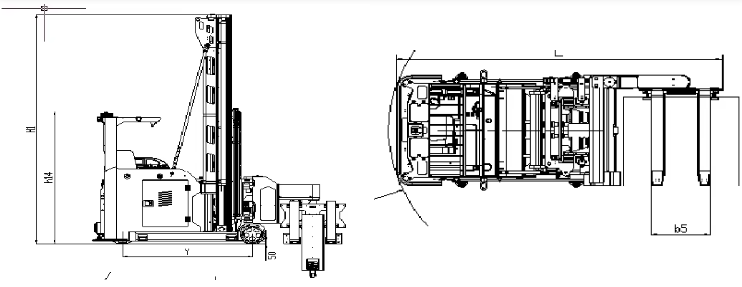

Parameters:
|
Features |
Model |
|
CDME16J-80S |
|
|
Rated load capacity |
Q(kg) |
1600 |
||
|
Load center distance |
C(mm) |
600 |
||
|
Wheelbase |
Y(mm) |
1750 |
||
|
Regular Specifications |
Lifting height |
H(mm) |
8000 |
|
|
Height when door frame retracts |
H1(mm) |
3960 |
||
|
Max height of door frame when operating |
Max height of door frame when operating |
3960 |
||
|
Overhead guard height/Navigation height |
h14(mm) |
2175/2280 |
||
|
Forklift height above ground |
H3(mm) |
50 |
||
|
Vehicle length |
L(mm) |
3400 |
||
|
Vehicle width |
b1(mm) |
1550 |
||
|
Fork size |
s/e/l(mm) |
50/125/1200 |
||
|
Fork outer width |
b5(mm) |
410-620
(customizable）
|
||
|
Minimum ground clearance (wheelbase center) |
m2(mm) |
50 |
||
|
Stacking channel width |
Ast(mm) |
1650 |
||
|
Main channel width |
mm |
3840+400 |
||
|
Minimum turning radius |
Wa(mm) |
2240 |
