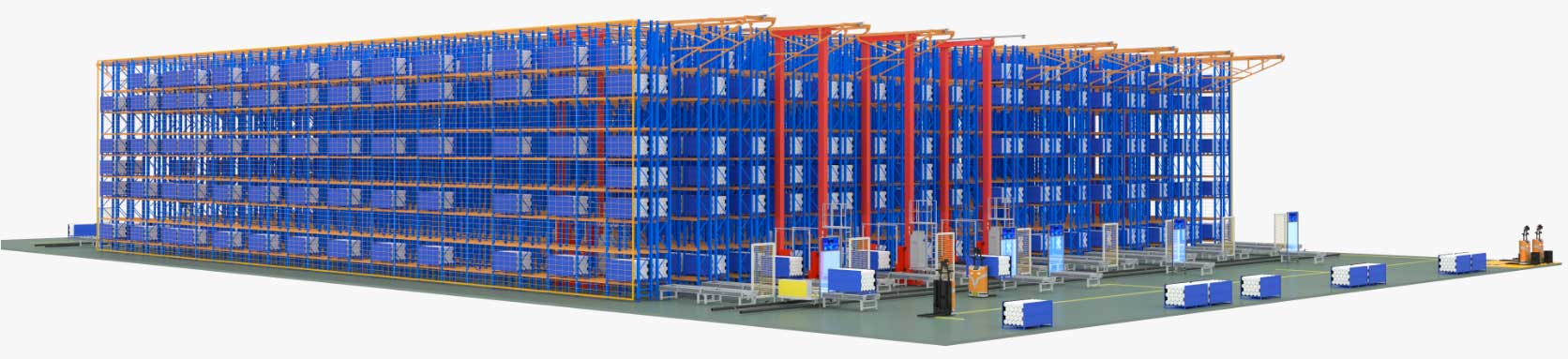

As the core operational unit in automated high-bay warehouses, the Heli Yufeng Stacker Crane is designed for high-density, high-throughput storage applications. Operating within fixed aisles, it achieves high-speed horizontal movement and precise vertical lifting through advanced servo control and fork mechanisms, enabling efficient handling of unit loads in high-r racking systems. Serving as a dependable cornerstone for large-scale, process-oriented smart warehousing, this system integrates three core values: space, efficiency, and reliability. Its vertical design significantly enhances storage density, while high-speed coordinated motion and intelligent scheduling algorithms deliver exceptional single-aisle throughput. Supported by mature electromechanical integration and a full lifecycle management system, it ensures long-term stable performance even under demanding operating conditions.
The Heli Yufeng Stacker Crane system is ideal for manufacturing, cold chain logistics, and large-scale distribution centers that require robust storage capacity and operational dependability, making it the preferred solution for building efficient and resilient automated warehousing infrastructure.
Product Detail
Video：
Product Features
Reliability & Intelligence
1) Utilize simulation technology to enhance design accuracy, with critical components sourced from internationally renowned brands. Stacker crane operational availability reaches 99.06%.
2) Configurable intelligent vision technology enables rack inspection and cargo detection to improve operational reliability.
Energy Efficiency & Sustainability
1) Implement lightweight design to reduce equipment self-weight and lower operational energy consumption.
2) Achieve motion synergy between X and Y axes to optimize speed and reduce energy usage.
3) Optional energy recovery modules feed energy generated during horizontal deceleration and cargo platform descent back into the grid.
4) High-performance speed algorithms improve fork operation efficiency, reducing horizontal and lifting speed requirements and lowering energy consumption.
Safety & Maintenance Convenience
1) CE certified, compliant with EN528-2021 and other relevant standards.
2) Features cable tray wiring and quick-connect interfaces, with safety operation and maintenance platforms for enhanced usability.
3) Configurable maintenance reminder functionality.
Optimized Spatial Footprint
Through optimization of upper and lower beam dimensions, space requirements for the first and top layers are effectively reduced, increasing storage density and maximizing customer land value.
Comprehensive Configurability
Offer a wide range of functions, component brand options, and customized designs to meet diverse customer requirements.
Basic parameters
Horizontal Travel System
Drive Method
Vector Frequency Control
Drive Motor Power（Kw）
Designed based on rated load
X-axis Positioning
Barcode or Laser
X-axis Accuracy
±5mm
Speed
120m/min
Acceleration
0.3m/S2
Max. Load Capacity（Kg）
5000kg
Lifting System
Max. Lifting Height (m)
40m
Lift Motor Power (Kw)
Designed based on rated load
Y-axis Positioning
Barcode or Laser
Y-axis Accuracy
±5mm
Speed
30m/min
Acceleration
0.3m/S2
Detection Devices
Photoelectric Sensor
Yes
Mechanical Limit
Yes
Z-axis Positioning
Encoder + Proximity Switch
Z-axis Accuracy (mm)
±5mm
Extension/Retraction Speed（m/min）
Loaded 30m/min
Unloaded 40m/min
