Product Detail
|
Features |
Model |
|

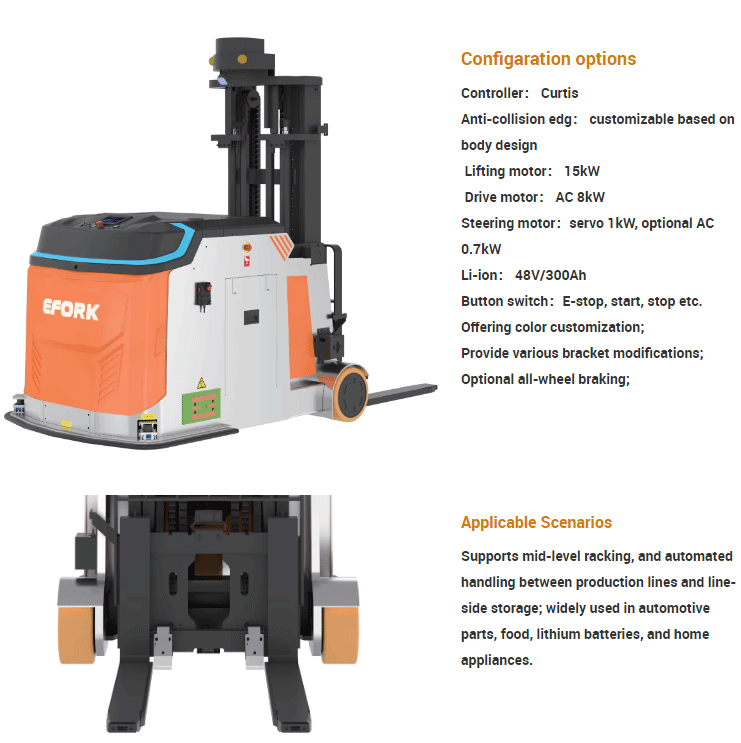

EDB30-30 |
|
|
Power |
|
Electric |
|
|
Operation mode |
|
Laser navigation |
|
|
Rated load capacity |
Q(kg) |
3000 |
|
|
Load center distance |
C(mm) |
600 |
|
|
Front overhang |
X(mm) |
207 |
|
|
Wheelbase |
Y(mm) |
1500 |
|
Weight |
Self weight including battery |
kg |
4600 |
|
Wheel parameters |
Wheel type |
|
PU |
|
|
Drive wheel specification |
∅×w(mm) |
Φ382X142 |
|
|
Load wheel specification |
∅×w(mm) |
Φ343X150 |
|
|
Balance wheel specifications |
∅×w(mm) |
/ |
|
|
Tire quantity（drive， balance/load）（X=drive） |
|
Tire quantity（drive， balance/load）（X=drive） |
|
|
Front wheel track, drive end |
b10(mm) |
/ |
|
|
Rear wheel track, load end |
b11(mm) |
1130 |
|
|
Fork tilt, F/R |
α/β( °) |
/ |
|
Dimensions |
Lifting height |
H(mm) |
3000 |
|
|
Mast height, lowered |
H1(mm) |
4060 |
|
|
Mast height, extended |
h3(mm) |
3000 |
|
|
Maximum working height |
h4(mm) |
4060 |
|
|
Fork height from ground（±5） |
h13(mm) |
45 |
|
|
Body length（safety edge） |
l1(mm) |
3200 |
|
|
Fork size |
s/e/l(mm) |
45/125/1070 |
|
|
Width at load backrest |
b3（mm） |
800 |
|
|
Fork outer width |
b5(mm) |
680 |
|
|
Minimum ground clearance (wheelbase center) |
m2(mm) |
85 |
|
|
Stacking channel width， pallet 1000×1200（C500) |
Ast(mm) |
3250+300 |
|
|
Stacking channel width， pallet 800×1200（C600) |
Ast(mm) |
3365+300 |
|
|
Minimum turning radius |
Wa(mm) |
1900 |
