Features |
Model |
|

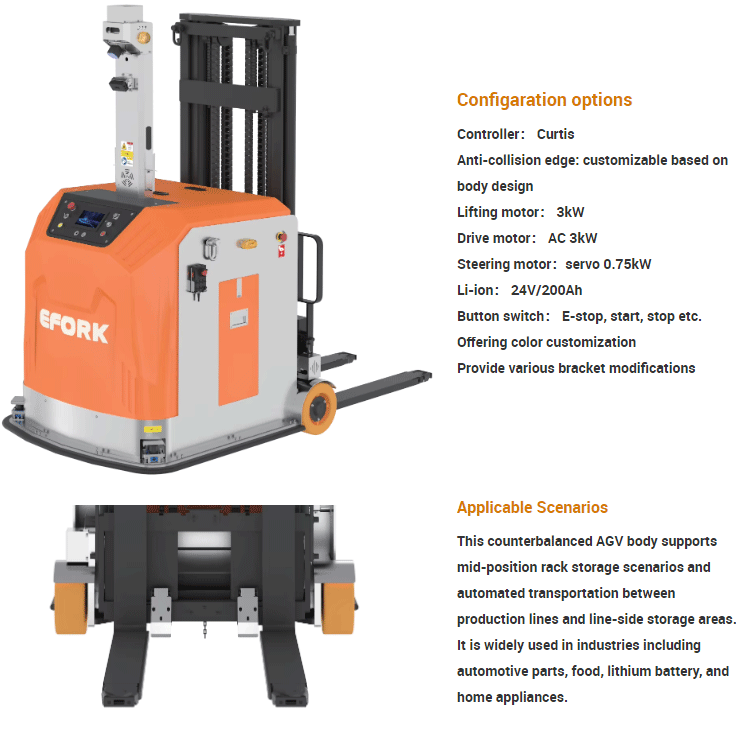

EDB15Ⅱ-30 |
|
Power |
|
Electric |
|
|
Operation mode |
|
Laser navigation |
|
|
Rated load capacity |
Q(kg) |
1500 |
|
|
Load center distance |
C(mm) |
500 |
|
|
Front overhang |
X(mm) |
155 |
|
|
Wheelbase |
Y(mm) |
1000 |
|
|
Weight |
Self weight including battery |
kg |
2800 |
|
Wheel parameters |
Wheel type |
|
PU |
|
Rear wheel specification |
∅×w(mm) |
Φ267x114 |
|
|
Front wheel specification |
∅×w(mm) |
Φ310x120 |
|
|
Balance wheel specifications |
∅×w(mm) |
/ |
|
|
Tire quantity（drive， balance/load）（X=drive） |
|
1X,0/2 |
|
|
Front wheel track, drive end |
b10(mm) |
/ |
|
|
Rear wheel track, load end |
b11(mm) |
1020 |
|
|
Fork tilt, F/R |
α/β( °) |
/ |
|
|
Dimensions |
Lifting height |
H(mm) |
3000 |
|
Mast height, lowered |
H1(mm) |
2110 |
|
|
Mast height, extended |
h3(mm) |
3000 |
|
|
Max height of door frame when operating |
H4(mm) |
3970 |
|
|
Fork height from ground（±5） |
H13(mm) |
40 |
|
|
Body length（safety edge） |
L1(mm) |
2530 |
|
|
Body width（safety edge） |
b1(mm) |
1205 |
|
|
Body heigh（t with navigation device） |
h（mm） |
2145 |
|
|
Fork size |
s/e/l(mm) |
40/122/1070 |
|
|
Width at load backrest |
b3（mm） |
950 |
|
|
Fork outer width |
b5(mm) |
680 |
|
|
Minimum ground clearance (wheelbase center) |
m2(mm) |
50 |
|
|
Stacking channel width， pallet 1000×1200（C500) |
Ast(mm) |
2600+300 |
|
|
Stacking channel width， pallet 800×1200（C600) |
Ast(mm) |
2715+300 |
|
|
Minimum turning radius |
Wa(mm) |
1300 |
