Product Advantages：
Narrow aisle & High lift & High operational accuracy

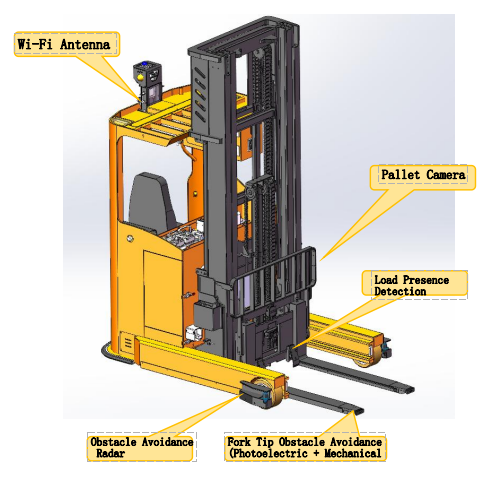

Minimum satcking aisle width: 2700mm; load capacity: up to 2T; Maximum lifting height: 12,000mm. Enables precise positioning of unmanned forklifts in natural environments, equipped with high-sensitivity sensing medules for carrier detection and unloading verification. Support adaptive and precise pallet handling with repeated placement accuracy ±10mm.
Product Detail
|
Features |
Model |
|
CQDE20J-45S |
|
Name |
|
Reach AGV body |
|
|
Power |
|
Electric |
|
|
Operation mode |
|
Laser navigation |
|
|
Rated load capacity |
Q(kg) |
2000 |
|
|
Load center distance |
C(mm) |
500 |
|
|
Reach distance |
l4(mm) |
655 |
|
|
Wheelbase |
Y(mm) |
1620 |
|
|
Weight |
Self weight including battery |
kg |
3300 |
|
Wheel, chassis |
Wheel type front/rear |
|
PU |
|
Load wheel |
∅×w(mm) |
φ267*114 |
|
|
Drive wheel |
∅×w(mm) |
φ382*142 |
|
|
Rear wheel track(load end) |
b11(mm) |
1180 |
|
|
Dimensions |
Mast height,lowered |
h1(mm) |
2105 |
|
Lifting height |
h2(mm) |
1140 |
|
|
Mast height,extended |
h3(mm) |
4500 |
|
|
Maximum working height |
h4(mm) |
5465 |
|
|
Overhead guard height |
h6(mm |
2180 |
|
|
Fork height from ground（±5） |
h13(mm) |
40 |
|
|
Mast tilt(F/R) |
α/β（ ° ） |
/ |
|
|
Body length(excl./incl fork)(safety edge) |
l1(mm) |
2136/2600 |
|
|
Body width(safety edge) |
b1(mm) |
1460 |
|
|
Fork size |
s/e/l(mm) |
40*122*1070 |
|
|
Fork adjustment size |
b5(mm) |
325-705 |
|
|
Minimum ground clearance(wheelbase center) |
m2(mm) |
70 |
|
|
Stacking channel width，pallet 1000X1200（C500） |
Ast(mm) |
2855+300 |
|
|
Minimum turning radius |
Wa(mm) |
2050 |
