Product Advantages：

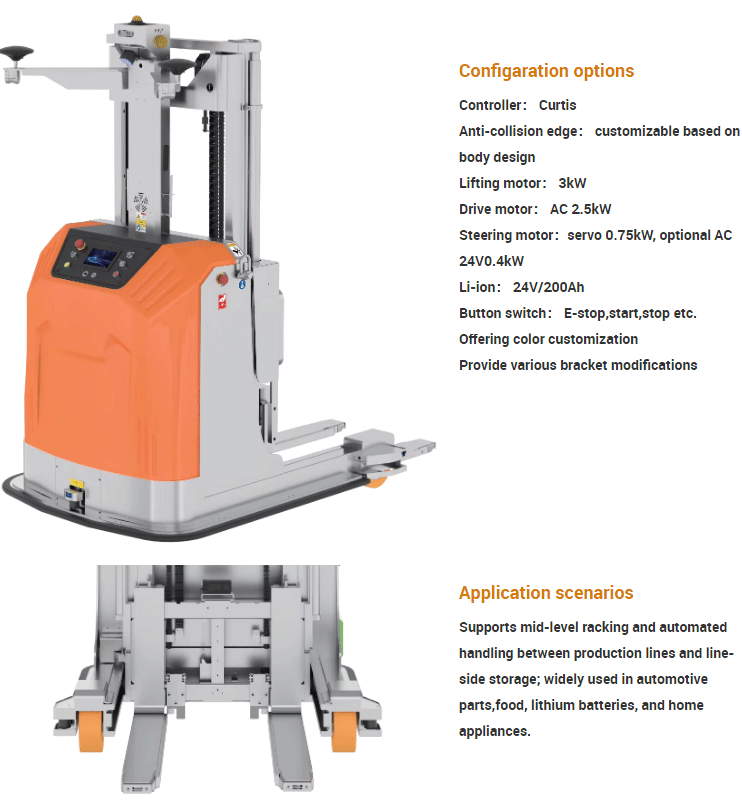

Compact & Slim, Perfect for Narrow Aisles
Product Detail
|
Features |
Model |
|
EQDA15-30 |
|
Power |
|
Electric |
|
|
Operation mode |
|
Laser navigation |
|
|
Rated load capacity |
Q(kg) |
1500 |
|
|
Load center distance |
C(mm) |
600 |
|
|
Wheelbase |
Y(mm) |
1220 |
|
|
Weight |
Self weight including battery |
kg |
2290 |
|
Wheel parameters |
Wheel type |
|
PU |
|
Load wheel specification |
∅×w(mm) |
φ210*85 |
|
|
Drive wheel specifications |
∅×w(mm) |
φ250*100 |
|
|
Rear wheel track（load end） |
b11(mm) |
961 |
|
|
Dimensions |
Mast height, extended |
H3(mm) |
3000 |
|
Mast height, lowered |
H1(mm) |
2040 |
|
|
Maximum working height |
H4(mm) |
3975 |
|
|
Fork height from ground（±5） |
h13(mm) |
40 |
|
|
Body length（incl. fork）（safety edge） |
l1(mm) |
2190 |
|
|
Body width（safety edge） |
b1(mm) |
1238 |
|
|
Fork size |
s/e/l(mm) |
40*122*1220 |
|
|
Fork adjustment size |
b5（mm） |
210-680 |
|
|
Forward distance |
l4(mm) |
700 |
|
|
Minimum ground clearance（wheelbase center） |
m2(mm) |
50 |
|
|
Stacking channel width, pallet 1000×1200（C600） |
Ast(mm) |
2322+300 |
|
|
Minimum turning radius |
Wa(mm) |
1506 |
