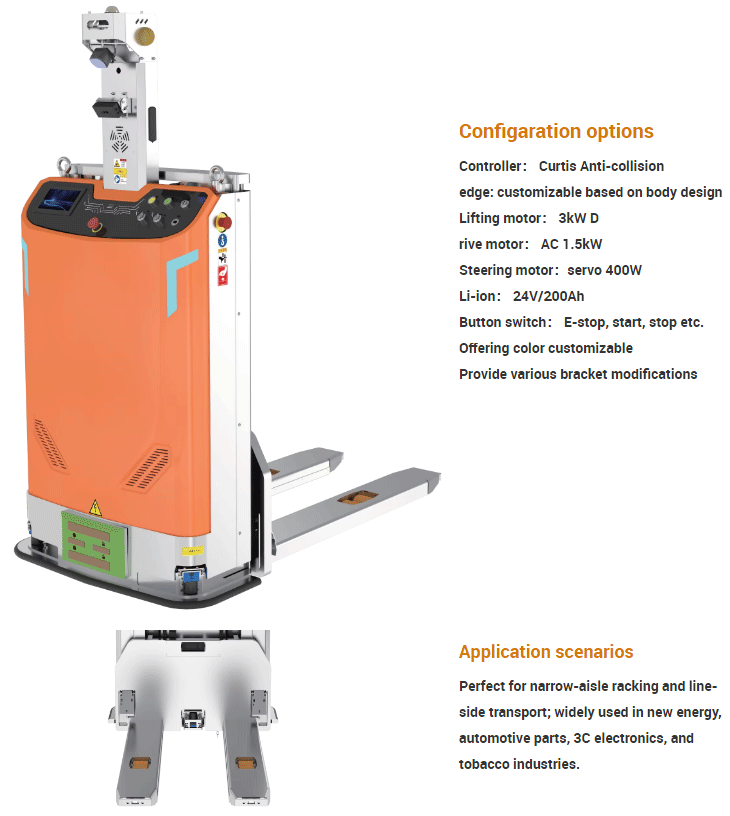

Product Detail
|
Features |
Model |
|
EDA20Ⅱ-16 |
|
Power |
|
Electric |
|
|
Operation mode |
|
Laser navigation |
|
|
Rated load capacity |
Q(kg) |
2000 |
|
|
Load center distance |
C(mm) |
600 |
|
|
Bearing distance |
X(mm) |
740 |
|
|
Wheelbase |
Y(mm) |
1020 |
|
|
Weight |
Self weight including battery |
kg |
920 |
|
Wheel parameters |
Wheel type, front/rear |
|
PU |
|
Front wheel specifications |
∅×w(mm) |
Φ80x70 |
|
|
Rear-wheel specifications |
∅×w(mm) |
Φ230x75 |
|
|
Balance wheel specifications |
∅×w(mm) |
Φ80x35 |
|
|
Tire quantity（drive， balance/load）（X=drive） |
|
1X,4/4 |
|
|
Front wheel track (Drive end) |
b10(mm) |
580 |
|
|
Rear wheel track (Load end) |
b11(mm) |
500 |
|
|
Regular Specifications |
Mast height, lowered |
h1(mm) |
1410 |
|
Lifting height |
h3(mm) |
1600 |
|
|
Maximum working height |
h4(mm) |
2170 |
|
|
Fork height from ground（±5） |
h13(mm) |
86 |
|
|
Body length（safety edge） |
l1（mm） |
1705 |
|
|
Body height（with navigation device） |
h（mm） |
1950 |
|
|
Body width（safety edge） |
b1(mm) |
930 |
|
|
Fork size |
s/ e/ l (mm) |
60*180*1220 |
|
|
Width at load backrest |
b3 (mm) |
830 |
|
|
Fork outer width |
b5 (mm) |
560/680 |
|
|
Minimum ground clearance(wheelbase venter) |
m2 (mm) |
30 |
|
|
Stacking channel width, 1200*1000 pallet(C600) |
Ast(mm) |
1930+300 |
|
|
Stacking channel width, 800*1200 pallet(C600） |
Ast(mm) |
1930+300 |
|
| Maximum gradeability, unloaded/loaded |
% |
5/5 |
