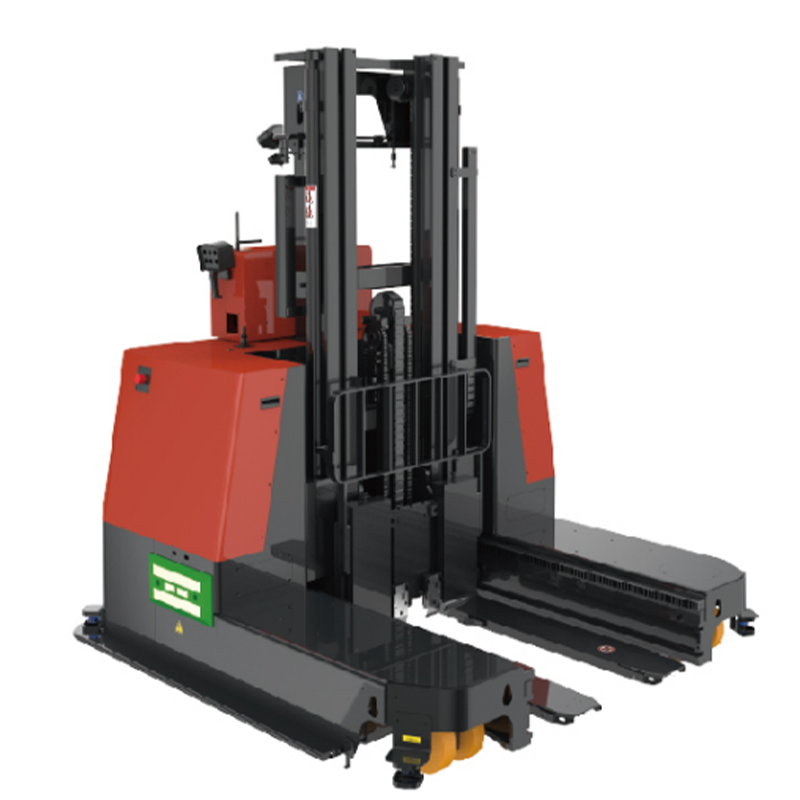

Double Mast Reach AGV with a load capacity of 2.0 tons. Its mast can extend or retract as a whole, enabling stacking in narrow aisles and meeting the demands of medium-to-high level racking and medium-density storage scenarios. Multiple configuration options are available, offering a variety of customized setups.
Technical Highlights
Features a three-point chassis structure with optional all-wheel braking, ensuring strong traction and high-load stability.
Equipped with imported Curtis controllers and servo controllers for enhanced stability, safety, and precision.
High-strength H-type mast with ample strength reserve guarantees safety during high-level loading.
Multiple configuration options available to adapt to different types of load carriers.
Product Detail
Product Video
Parameters:
|
Model Designation |
|
CQDE20HJ |
CQDE20J |
|
Typology |
|
Reach |
Reach |
|
Navigation |
|
2D/3Dslam |
2D/3Dslam |
|
Load Capacity |
kg |
2000 | 2000 |
|
Max.lifting height |
mm |
8000 | 8000 |
|
Max. travelling speed(Full Load/Unladen) |
km/h |
6/7 |
6/7 |
|
Min. turning radius |
mm | 2060 | 2050 |
|
Right-angle Stacking Aisle Width(For 1000*1200 Pallet) |
mm | 2915+300 |
2855+300 |
|
Positioning Accruacy |
mm |
±10 |
±10 |
|
Communication Method |
|
5G/wifi |
5G/wifi |
|
Battery Capacity(Standard) |
V/Ah |
48V/350Ah |
48V/300Ah |
|
Total Vehicle Weight (Including Battery) |
kg | 3800 | 2800 |
|
Overall Vehicle Dimensions(L*W*H) |
mm |
2168/2702 (including touch edge) x 1490 (including touch edge) x 3166 |
2136/2600 (including touch edge) x 1460 (including touch edge) x 2105 |
