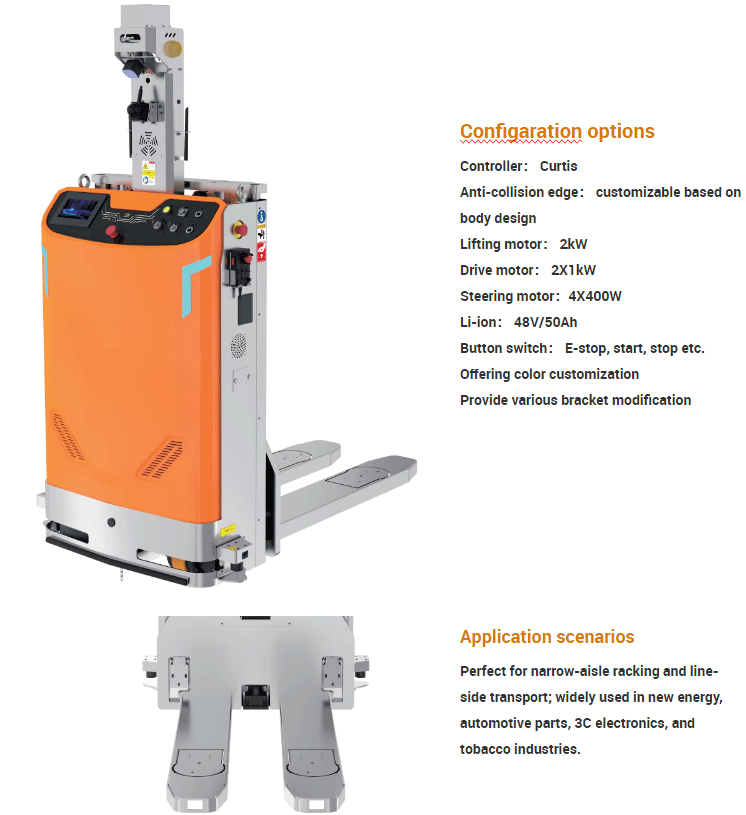

Slim Body Design & Omni-Directional Mobility
Product Detail
|
Features |
Model |
|
EDQ10-16 |
|
Power |
|
Electric |
|
|
Operation mode |
|
Laser navigation |
|
|
Rated load capacity |
Q(kg) |
1000 |
|
|
Load center distance |
C(mm) |
600 |
|
|
Carrying distance |
X(mm) |
910 |
|
|
Wheelbase |
Y(mm) |
1200 |
|
|
Weight |
weight with battery |
kg |
800 |
|
Wheel parameters |
Wheel type |
|
PU |
|
Front wheel specifications |
∅×w(mm) |
Φ65x30 |
|
|
Rear-wheel specifications |
∅×w(mm) |
Φ65x30 |
|
|
Balance wheel specifications |
∅×w(mm) |
/ |
|
|
Tire quantity（drive， balance/load）（X=drive） |
|
2X,0/4 |
|
|
Front wheel track, drive end |
b10(mm |
470 |
|
|
Rear wheel track, load end |
b11(mm) |
470 |
|
|
Dimensions |
Mast height, lowered |
h1(mm) |
1410 |
|
Mast height, extended |
h3(mm) |
1600 |
|
|
Maximum working height |
h4(mm) |
2170 |
|
|
Fork height from ground（±5） |
h13(mm |
91 |
|
|
Body length（safety edge） |
l1(mm) |
1705 |
|
|
Body width（safety edge） |
b1（mm） |
1000 |
|
|
Body height（ with navigation device） |
h(mm) |
1995 |
|
|
Fork size |
s/e/l（ mm） |
60*210*1220 |
|
|
Width at load backrest |
b3(mm |
830 |
|
|
Fork outer width |
b5(mm) |
680 |
|
|
Minimum ground clearance（wheelbase center） |
m2(mm) |
13 |
|
|
Side travel aisle |
Wa(mm) |
1705+300 |
|
|
Full-load pivot aisle |
Wa(mm) |
1875+300 |
